Air Filtration Media- Pocket Filter Media

TEDA FILTERS Pocket filters material(C-III and B-II series) are all in bi-componont structure, in that, the super-fine MB fiber give the nonwoven higher filtration efficiency and the 3D crimp staple fiber convey excelent compression resilince property. The two fibers are blended in structure of “Z” shape,which makes the filter media featured with higher air permeability and dust holding capacity, more importantly, it can decrease the pressure drop raising up during its using.

So they are ideal filtration media for the applications requesting higher dust holding and low resistance synchronously. B-II series has one more pre-filter layer which have better dust holding capacity.

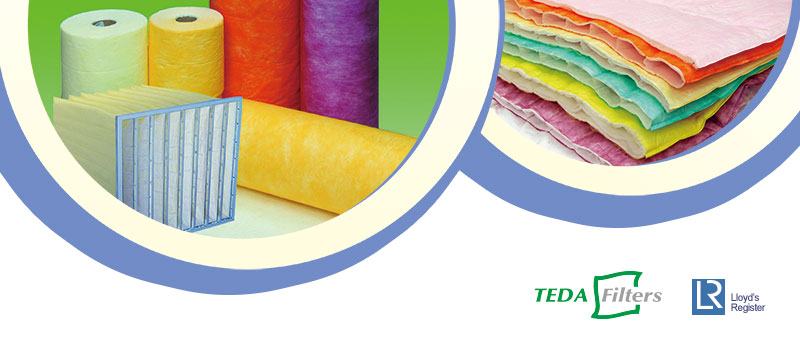

Pocket-Filter-Media

The filter material can be ordered in several types

ModelStandardFlow rate 32L/min                               Face Velocity@5.3cm/sWeight(g/m²)±10%Color
CHINA                 GB/T14295-93EURO EN779:2002EURO EN779:2012Initial Resistance                        (mmH2O)Initial Efficiency  (%)
B seriesTD-45BMediumF5M51.229150light yellow
TD-65BMediumF6M61.651180orange
TD-85Bsenior mediumF7、F8F7、F82.168210purple
TD-95BSub-HEPAF9F92.680240apricot
B-Ⅱ seriesTD-45B-ⅡMediumF5M51.12990light yellow
TD-65B-ⅡMediumF6M61.458100orange
TD-85B-Ⅱsenior mediumF7、F8F7、F81.976120purple
TD-95B-ⅡSub-HEPAF9F92.690140apricot
C-Ⅲ seriesTD-45C-ⅢMediumF5M51.14272light yellow
TD-65C-ⅢMediumF6M61.35882orange
TD-85C-Ⅲsenior mediumF7、F8F7、F81.77692purple
TD-95C-ⅢSub-HEPAF9F92.591112apricot
